On the surface · On sale today
Bio-mineral barrier coatings for paper cups, folding cartons and board
Papkot coatings are thin layers on the surface of paper and board. They replace plastic coatings and PFAS.
Paper cups with Papkot coatings comply with the EU Single-Use Plastics Directive (SUPD).
Tell us the paper or board, the barrier and your line. We answer for that use.
Paper cups · SUPD compliant
Paper cups and folding cartons
Paper cups and folding cartons come first. They carry the most weight in our work.
Papkot adds no PFAS to its coatings. They contain no plastic.
Paper cups with Papkot coatings comply with the EU Single-Use Plastics Directive (SUPD). Papkot cup coatings already compete on cost with PE extrusion.
- SUPD compliant cups
- Paperboard, as it leaves the mill.
- The Papkot coating goes on the surface.
- Your converter makes the cups and the cartons. The cups comply with the SUPD.
What a Papkot coating does
A thin layer on the surface.
It keeps out water, or oil and grease.

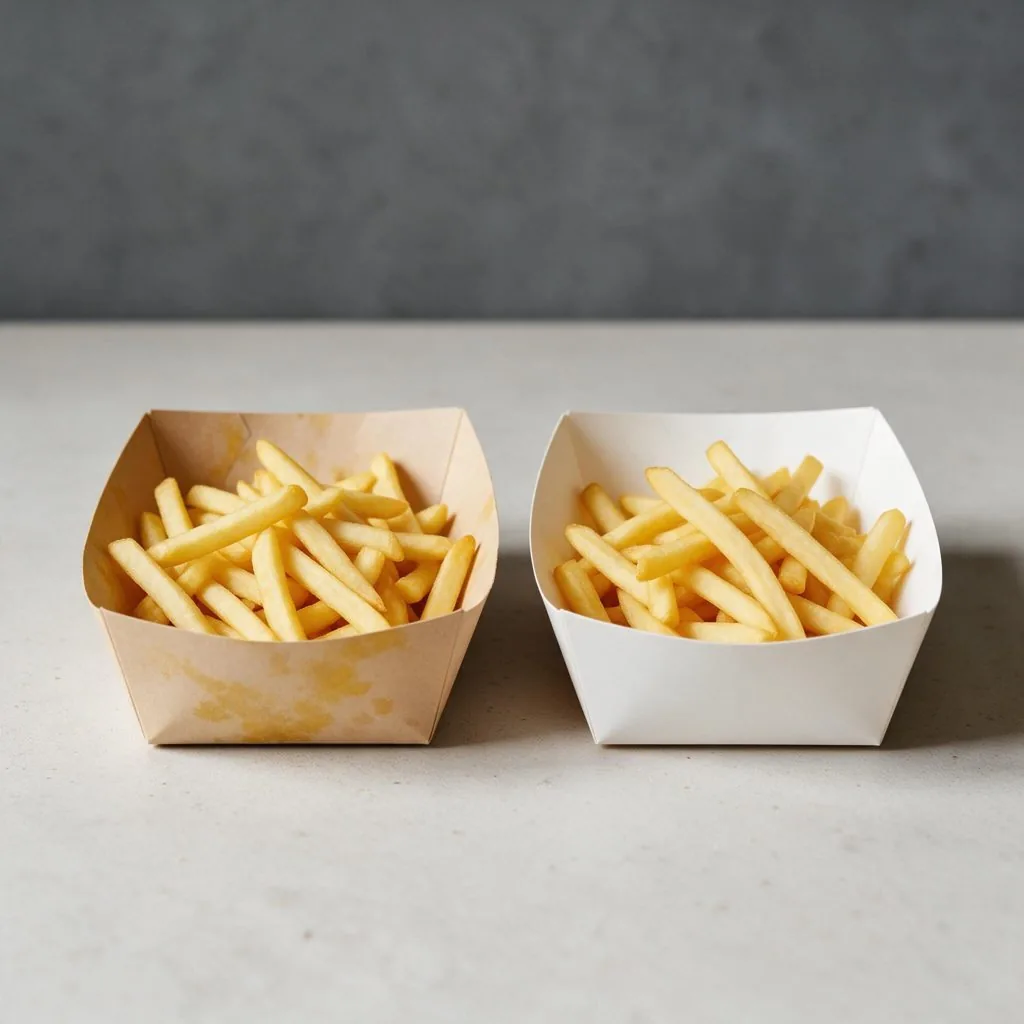

- Paper with no barrier: oil and grease go into it.
- A thin Papkot coating goes on the surface.
- Water, or oil and grease, stays on top.
Water, and oil and grease barriers
Some coatings give a barrier against water. Some give a barrier against oil and grease.
Oil and grease barriers on food wraps and containerboard: KIT 6 to 12. The coat weight sets the level.
Online and offline
A Papkot coating can go on the paper in two places. Offline, a coating line applies it after the paper is made. Online, the paper machine applies it as the paper is made.
Offline today: rod, gravure and blade coating lines. Online is our roadmap: blade coating, and the film press (metering size press, MSP), which can coat one side only. We develop our grease barriers for the size press and test them on our lab size press.
On light wrap papers of 30 to 34 g/m², our lab size press reached KIT 7 with 2.35 to 3.25 g/m² of coating per side. On 38 to 40 g/m² wraps, about 2.5 g/m² per side on the size press passed all four of our grease tests on both sides.
Tell us your machine: blade, film press, pond size press or metering size press, and the speed. We test on your base paper.
- Offline today: rod, gravure, blade
- Online: blade, film press (MSP)
TR series, Vetrino and Fireseal
TR series
The TR series is the Papkot coating for transparent paper. It is solvent-based.
See the TR series

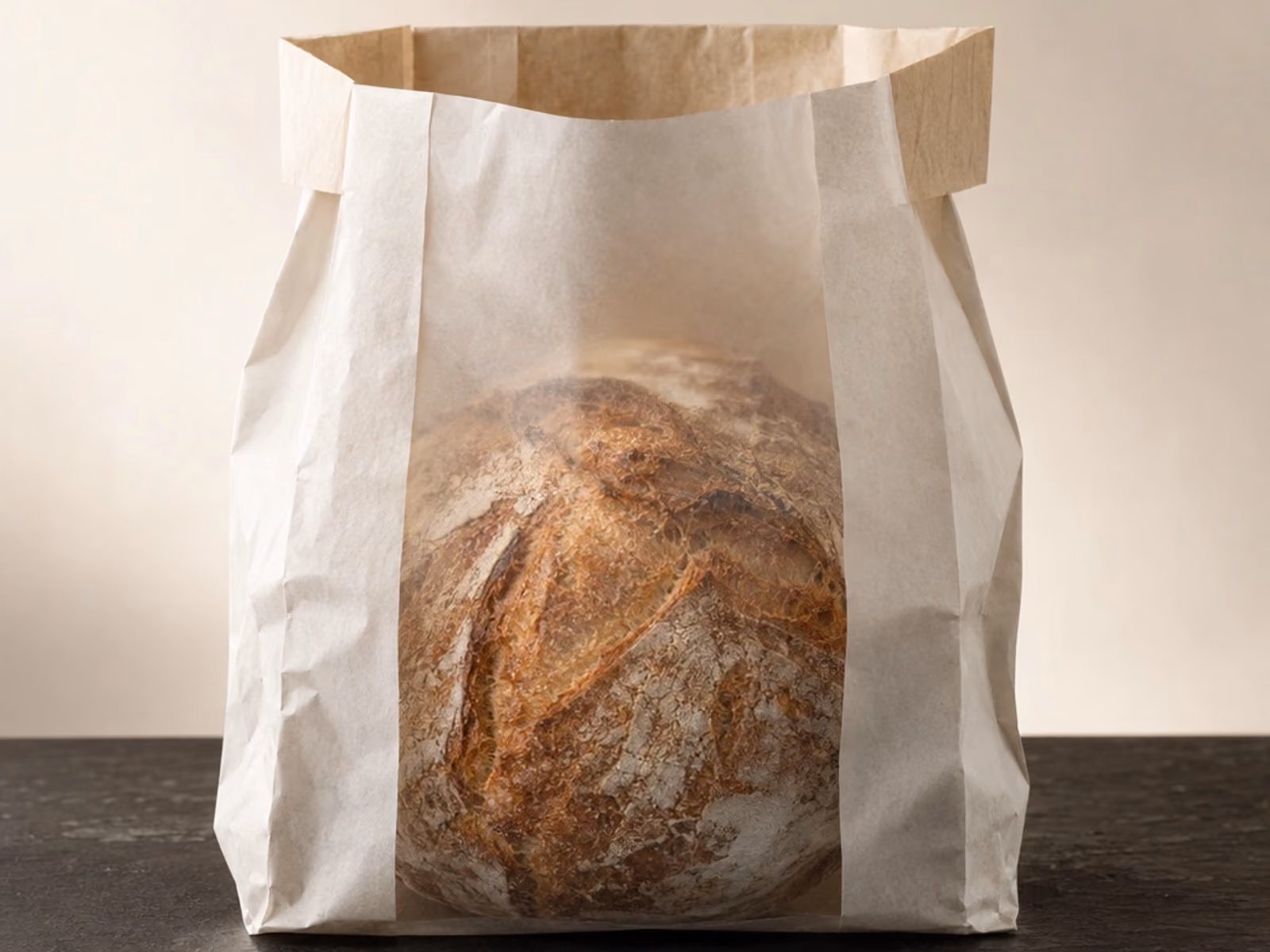

Vetrino
Vetrino is the transparent paper that the TR series coating makes. Papkot does not sell Vetrino. The supply chain is ready to deliver it.
On sale today
Fireseal
Fireseal is a fire-resistant coating. The video shows it: the paper passes M1 certification and keeps its properties, where other fire retardants, such as organophosphates, damage them.
Three platforms
On the surface
Looking for strength inside the fibre? See papermaking additives.
Uses
- Paper cups
- Folding cartons
- Packaging for food
- Oil and grease resistant paper
- Waterproof paper
- Transparent paper
Food contact
Each product has its own food-contact documents. Ask for them.
Questions
What is a barrier coating?
A thin layer on the surface of paper or board that keeps out water, or oil and grease.
Which barriers does Papkot make?
Some coatings give a barrier against water. Some give a barrier against oil and grease.
Can I get food-contact documents?
Each product has its own food-contact documents. Ask for them.
Does Papkot sell Vetrino?
No. Vetrino is a transparent paper. Papkot sells the TR series coating that makes it. The supply chain is ready to deliver Vetrino.
Does Papkot make other barriers?
Tell us your need and we answer.
Do paper cups with Papkot coatings comply with the SUPD?
Yes. Paper cups with Papkot coatings comply with the EU Single-Use Plastics Directive (SUPD).
Which KIT level can an oil and grease barrier reach?
On food wraps and containerboard: KIT 6 to 12. The coat weight sets the level.
Tell us the grade and the barrier
How do you apply a coating today? Rotogravure / Flexo / Rod / Air blade / Curtain / Dip / Spray / Other. We answer within two business days.
